ITEM SPECIFICS

Brand

Qlight

Model QNE
origin

Republic of Korea
Size(Capacity)

1

PRODUCT DESCRIPTION

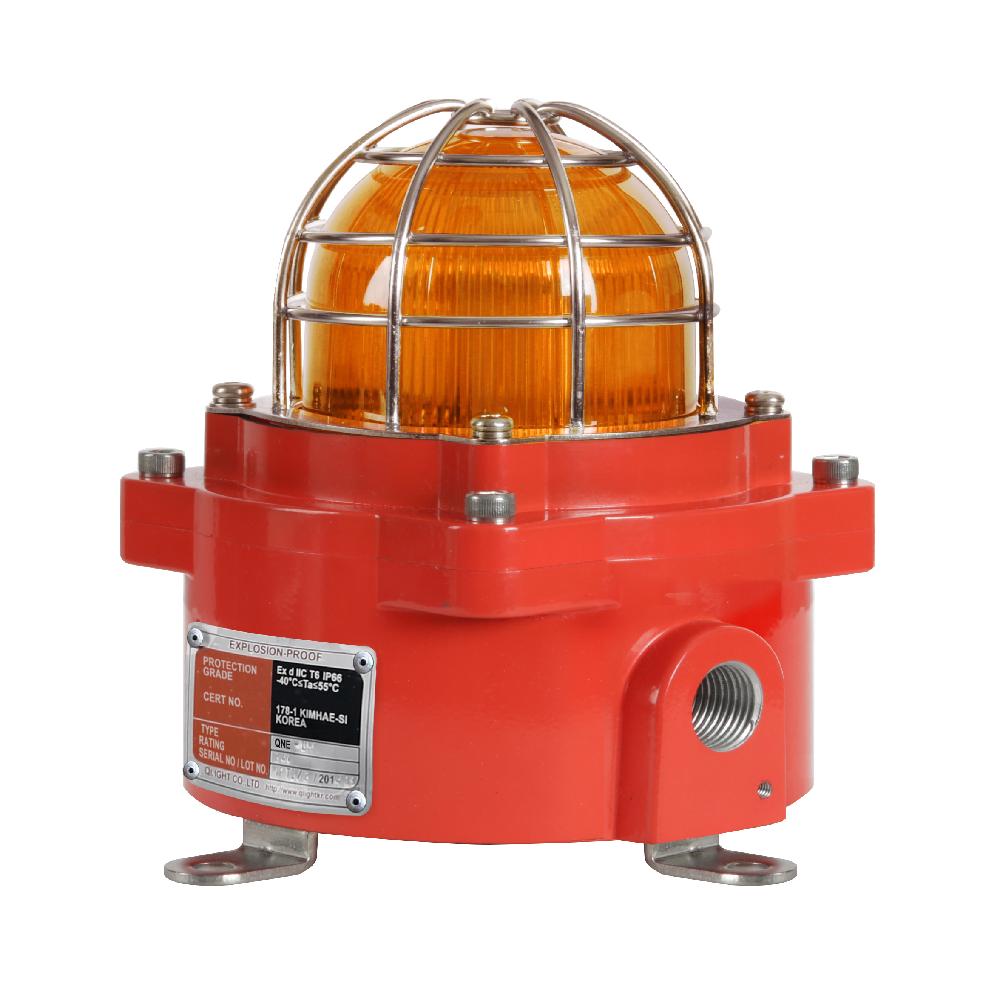

Explosion proof, multifunctional, and compact LED signal light designed for use in explosive gas environments with Ex d Ⅱ C rating
Features excellent shock and vibration resistance, maintenance significantly reduced with long-lasting LED light source
A variety of sound selections between warning sounds, alarm sounds, melodies and voice messages to fit your sophisticated application needs
Features superior durability with aluminum housing
Fully enclosed structure with protection rating of IP66
Housing standard color: Red, MUNSELL No. 7.5BG 7/2
Cable Entry: 1/2″ NPT
Flashing rate(LF type): 60-80/min.
Strobe rate(LR type) : 70~80/min.
Simulated revolving rate(LR type) : 120~140RPM
Materials : Lens-PC, Inner lens-Tempered glass, Bracket-SUS304, Housing-Al
Certificates : ATEX, IECEx, KCs
Protection rating : ATEX - II 2G Ex d IIC T5/ T6, IP66
　　　　　　　　IECEx, KCs - Ex d IIC T5/ T6, IP66
Ambient operating temperature : -40℃ ≤ Tamb ≤ +60℃
　　　　　　　　　　　　　　　　-40℃ ≤ Tamb ≤ +50℃
